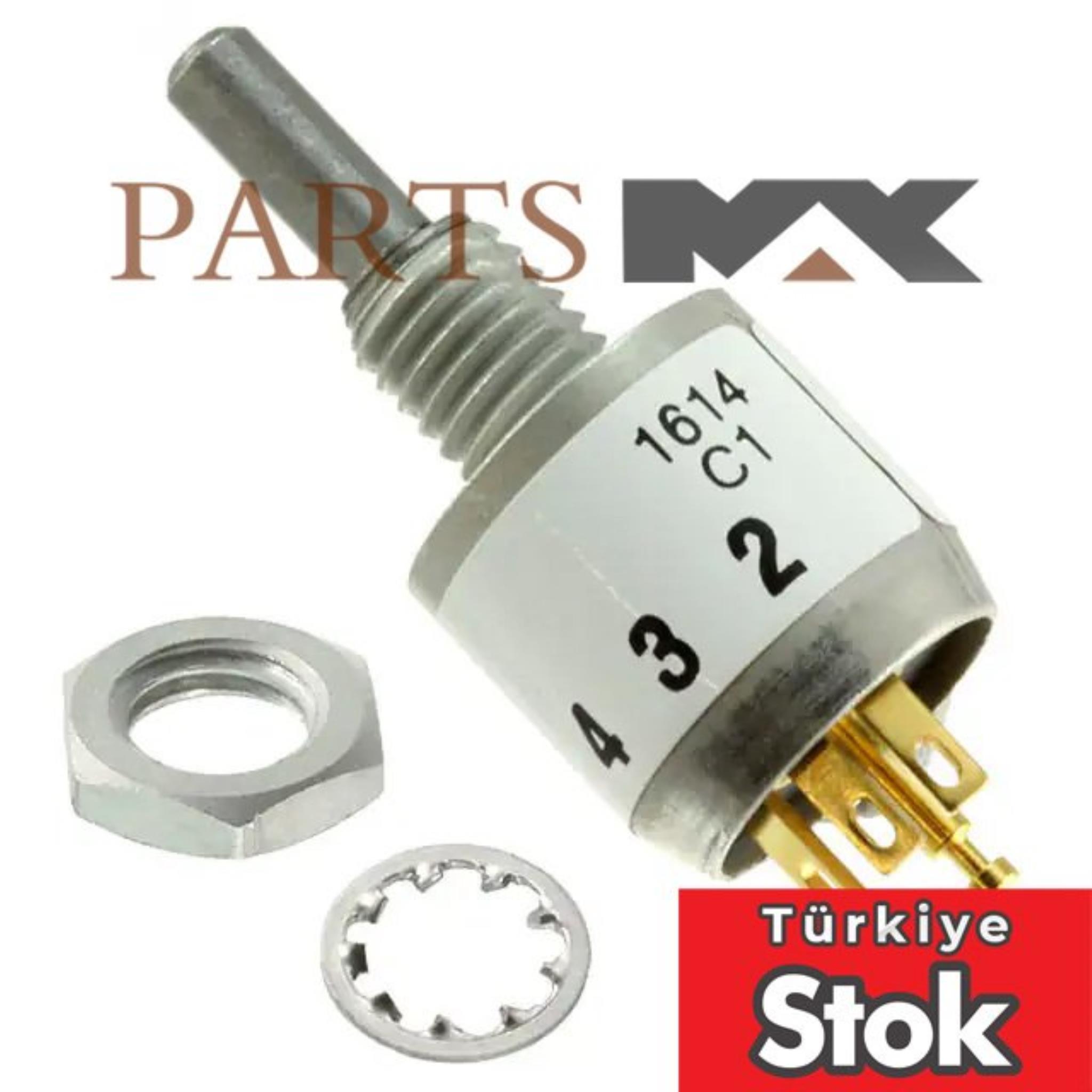

| EU RoHS |
Compliant with Exemption |
| ECCN (US) |
EAR 99 |
| Part Status |
Active |
| HTS |
8536.50.90.20 |
| Actuator Style |
Flatted Shaft |
| Pole Throw Configuration |
SP8T |
| Angle of Throw (°) |
45 |
| Number of Positions |
8 |
| Poles per Deck |
1 |
| Number of Decks |
1 |
| Maximum Current Rating (A) |
0.2@28VDC |
| Dielectric Strength |
600VAC |
| Minimum Insulation Resistance (MOhm) |
1000 |
| Maximum Contact Resistance (mOhm) |
10 |
| Electrical Life (Cycles) |
25000(Max) |
| Maximum Operating Torque (N.m) |
0.169 |
| Actuator Diameter (mm) |
3.18 |
| Actuator Length (mm) |
9.53 |
| Contact Style |
Non-Shorting |
| Stop Style |
Continuous |
| Seal |
O-Ring(Fluorosilicone)/O-Ring(Silicon Rubber)/(Process/Epoxy) |
| Seal Location |
Shaft/Panel/Terminals |
| Seal Description |
O-Ring(Fluorosilicone)/O-Ring(Silicon Rubber)/(Process/Epoxy) |
| Mounting |
Panel Mount |
| Termination Style |
Solder Lug |
| Terminal Length (mm) |
5.94 |
| Number of Terminals |
8 |
| Base Material |
Thermoset |
| Body Orientation |
Straight |
| Thread Length (mm) |
6.35 |
| Body Length (mm) |
12.7 |
| Body Depth (mm) |
12.7 |
| Body Height (mm) |
12.82 |
| Product Length (mm) |
12.7 |
| Product Depth (mm) |
12.7 |
| Product Height (mm) |
35.46 |
