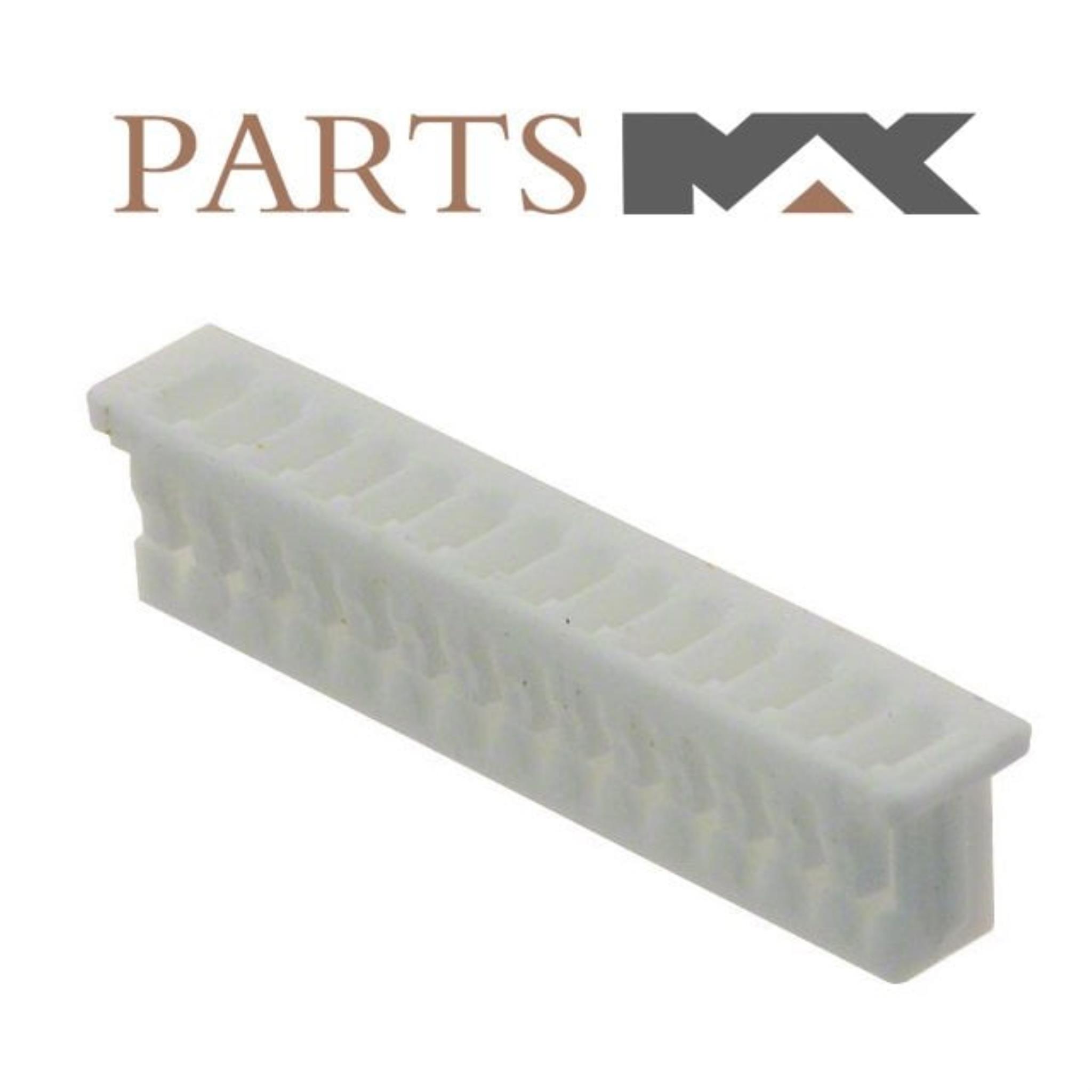

Product Features Product Technical Specifications EU RoHS Compliant ECCN (US) EAR99 Part Status Active HTS 8538.90.81.80 Type Housing Gender RCP Number of Contacts 14 Number of Rows 1 Termination Method Crimp Terminal Pitch (mm) 1.25 Body Orientation Straight Maximum Current Rating (A) 1/Contact Maximum Voltage Rating 125VDC|125VAC Insulation Resistance (MOhm) 100 Minimum Operating Temperature (°C) -40 Maximum Operating Temperature (°C) 105 Mating Cycle (Cycles) 30 Packaging Bag Product Weight (g) 0.1225 Product Length (mm) 19.25 Product Depth (mm) 3.2 Product Height (mm) 3.95 Tradename PicoBlade™ Keyed Yes Mounting Cable Mount
