| EU RoHS |
Compliant |
| ECCN (US) |
EAR99 |
| Part Status |
Active |
| HTS |
8536.69.40.40 |

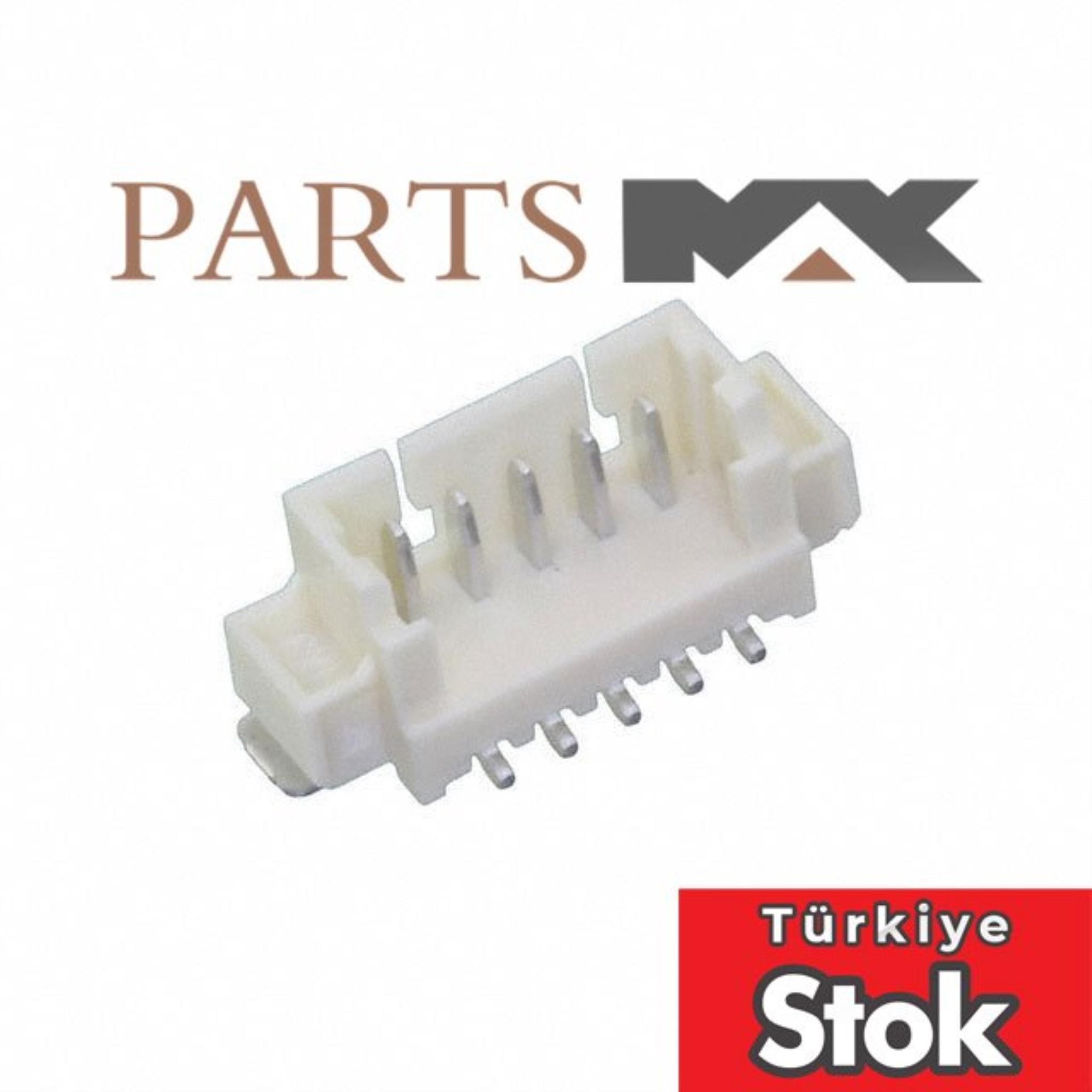

| Type |
Shrouded Header (3 Sides) |
| Gender |
HDR |
| Number of Contacts |
5 |
| Number of Rows |
1 |
| Termination Method |
Solder |
| Terminal Pitch (mm) |
1.25 |
| Body Orientation |
Straight |
| Polarization Type |
Dual Slot |
| Maximum Current Rating (A) |
1/Contact |
| Maximum Voltage Rating |
125V |
| Insulation Resistance (MOhm) |
100 |
| Maximum Contact Resistance (mOhm) |
20 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Mating Cycle (Cycles) |
30 |
| Packaging |
Tape and Reel |
| Product Weight (g) |
0.475 |
| Product Length (mm) |
11.4 |
| Product Depth (mm) |
4.2 |
| Product Height (mm) |
4.7 |
| Tradename |
PicoBlade™ |
| Contact Plating Thickness |
(1/1)um |
| Mounting |
Surface Mount |
