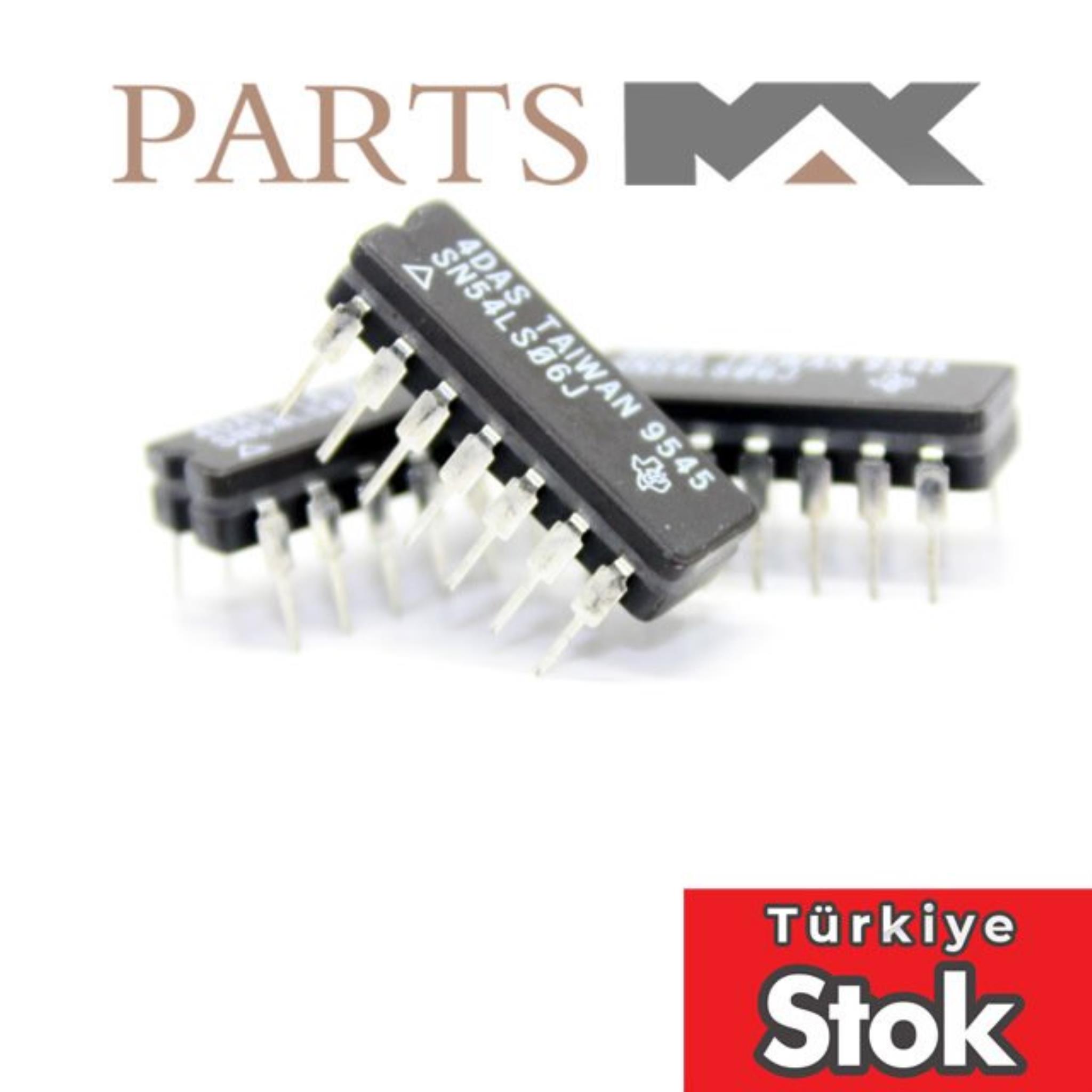

EU RoHS |
Not Compliant
|
|
ECCN (US) |
EAR99 |
|
Part Status |
Active |
|
HTS |
8542.39.00.01 |
|
Logic Family |
LS |
|
Logic Function |
Buffer/Driver |
|
Number of Elements per Chip |
6 |
|
Number of Channels per Chip |
6 |
|
Number of Inputs per Chip |
6 |
|
Number of Input Enables per Chip |
0 |
|
Number of Outputs per Chip |
6 |
|
Number of Output Enables per Chip |
0 |
|
Bus Hold |
No |
|
Polarity |
Inverting |
|
Maximum Propagation Delay Time @ Maximum CL (ns) |
20@5V |
|
Absolute Propagation Delay Time (ns) |
20 |
|
Process Technology |
Bipolar |
|
Input Signal Type |
Single-Ended |
|
Output Type |
Open Collector |
|
Maximum Low Level Output Current (mA) |
30 |
|
Maximum High Level Output Current (mA) |
-0.25 |
|
Minimum Operating Supply Voltage (V) |
4.5 |
|
Typical Operating Supply Voltage (V) |
5 |
|
Maximum Operating Supply Voltage (V) |
5.5 |
|
Propagation Delay Test Condition (pF) |
15 |
|
Maximum Power Dissipation (mW) |
175(Typ) |
|
Minimum Operating Temperature (°C) |
-55 |
|
Maximum Operating Temperature (°C) |
125 |
|
Supplier Temperature Grade |
Military |
|
Packaging |
Tube |
|
Standard Package Name |
DIP |
|
Supplier Package |
CDIP |
|
Pin Count |
14 |
|
Mounting |
Through Hole |
|
Package Height |
3.56(Max) |
|
Package Length |
19.94(Max) |
|
Package Width |
7.19(Max) |
|
